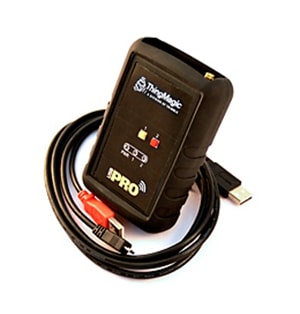

New enhanced USB Pro RFID Reader

Our USB RFID Reader has been enhanced for year 2016. Now, it is the USB Pro RFID Reader. Based on M6e-Micro 4G/LTE RFID module the USB Pro Reader offers a number on enhancements including:

  • Wider power range
  • New external antenna port
  • Enhanced firmware features

The USB Pro Reader is preconfigured for most regions in the world including the Americas (FCC/IC rules), Europe (ETSI rules), India (TRAI), Korea (KCC), Australia (ACMA), China (SRRC-MII) and Japan (MIIC). The Reader also has a customizable option to accomodate other areas and research applications. The wider power range from -5 to +30 dBm gives greater flexibility in applying the reader. Features of the USB Pro RFID Reader include:

USB Pro Reader RFID 4G/LTE

  • Support for EPCglobal Gen 2 (ISO 18000-6C) with Anti-Collision and DRM
  • Powered by USB connection to notebook or desktop PC
  • With its own software and applications development tools
  • Support for full 860 to 960 MHz UHF RFID carrier frequency range to accommodate worldwide regulations
  • Certifiable for operation in countries adopting FCC, ETSI, KCC, TRAI, ACMA, SRRC regulatory specifications (Open (Customizable) 860-960 MHz)
  • Tag Read Rate up to 50 tags/second
  • Tag Read Distance Up to 1.2 m (4 feet) with internal antenna
  • Tag read distance up to 6.1 m (20 feet) with external 6 dBi linear polarized external antenna
  • Operating temperature range -40 to +60º C with appropriate duty cycle
  • Dimensions: 97 mm L x 61 mm W x 25 mm H (3.8 in L x 2.4 in W x 1.0 in H)
